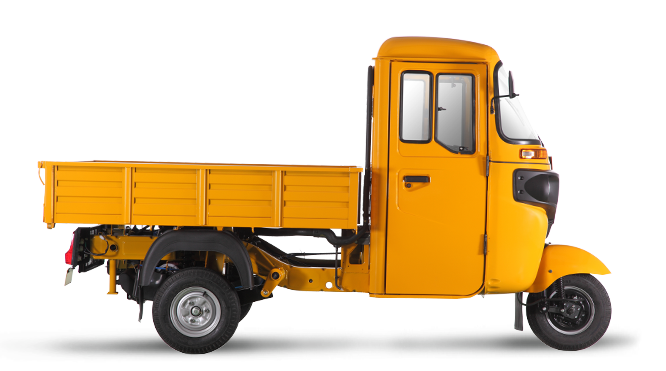

Maxima Cargo Petrol

TECHNICAL SPECIFICATIONS

Model Maxima Z -Cargo Petrol
Type Four stroke, Air and Oil cooled, Twin Spark plug, S.I. Engine
Fuel required Petrol
Displacement (cc) 236.2 cc
Max Power 7.7 Kw @ 4500 rpm
Max Torque 19 Nm @ 3500 rpm
Mileage (Company) 26 – 28 Km Per Ltr
Starting Method Eletric Start
Transmission 4 forward + 1 reverse gear
Clutch Wet, Multiplate
OverAll Length 2635 mm
OverAll Width 3230 mm
OverAll Height 1493 mm
Wheel Base (mm) 1818 mm
Ground Clearance (mm)190 mm
Kerb Weight (KG) 475 kg
Weight Carrying Capacity 515 Kgs
Chasis Type Monocoque chassis with central beam and cross member welded
Brake TypeHydraulically actuated brake shoes – Leading & Trailing Type
Fuel Tank (Reserve / Usable) 12 L
Head Lamp 12V 35/35W, Twin Headlamps
Recommended Oil 20W50 SL Grade Bajaj DTSI
